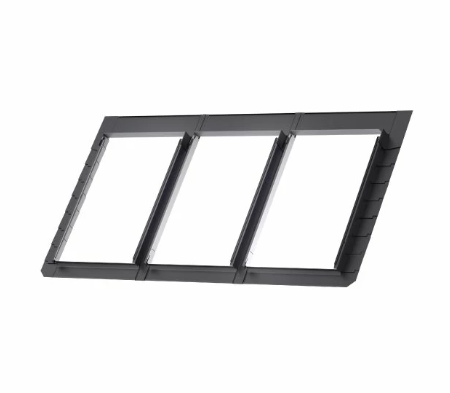

The VELUX EBL integrated triple combination flashing for slates allows for a seamless installation process of windows side-by-side. These triple combination flashings have an 18mm gap between windows. These integrated flashings include bearing beams as standard giving you an easy and worry-free installation process.
Flashing Guide
EBL - Slates
• For slate up to 8mm thick.
• Not for interlocking slate.
• Roof pitches from 15°-90°.
EBW - Profiled Tiles
• For profiled roofing material up to 120mm.
• Suitable for interlocking slate, thatch and profiled sheeting.
• Roof pitches from 15°-90°
EKP - Plain Tiles
• For plain tiles (max length 300mm).
• Maximum thickness of 14mm.
• Roof pitches from 25°-90°.
Still unsure on what flashing is the right one? Have a look here.
- Distance (gap) between Windows:
- 18 mm
- Exterior Finish:
- Aluminium Grey
- External Colour:
- Grey Aluminium
- Number of Windows (Horizontal):
- 3
- Number of Windows (Vertical):
- 1
- Roof Material:
- Slates
- Size:
- CK04 - 55cm (W) x 98cm (H)
- Size Code:
- CK04
- Size Description:
- 55cm (W) x 98cm (H)
- Size Height:
- 978
- Size Short Description:
- 55x98cm
- Size Width:
- 550
- Warranty:
- 10 years
